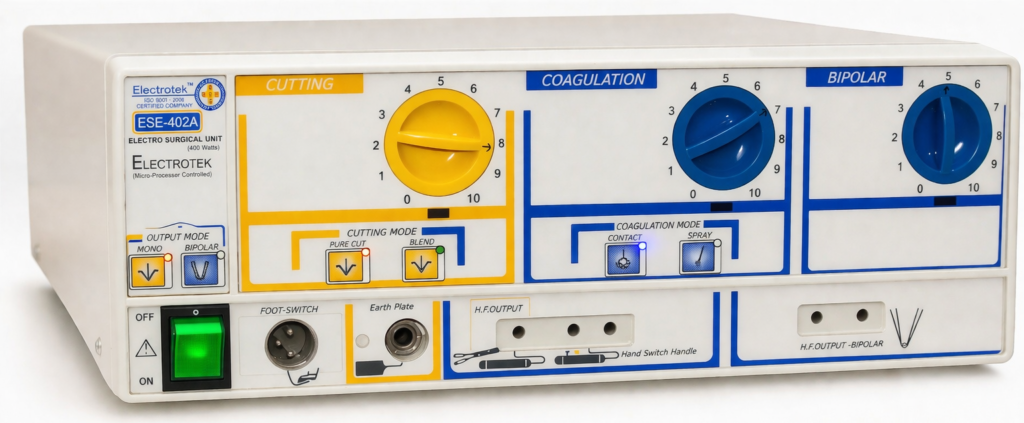

Model 402A (400 Watts) – Analog ESU

Model 402A (400 Watts) – Analog ESU

The Model 402A is a reliable electro surgical unit with analog control, designed for consistent and stable performance. It is suitable for a wide range of surgical procedures and provides easy operation with robust build quality.
An universal microprocessors controlled analog scale power controlled 400 watts ESU with under water surgery. In the use of Electro Surgical Unit model 402A, the technical ability of the unit combined with patient safety are of prime importance both for the patient and the users. There must be no possibility of accidental, undesirable results in the use of such a unit. With these points in mind and the introduction of a new high frequency generator technology, the new era of Electro surgical unit have been developed. The VMD are newly developed ESU of particular safety and reliability.

Key Features

Technical Specifications

Input Power : 200–240V / 50Hz / 750W max
Measurement : (350 × 132 × 345) mm
Weight : Approx. 10.5 Kg
Output Frequency : 500 KHz
Pulse Frequency : 35 KHz
Pure Cut : 400 watts
Blend (Endo Cut) : 250 watts
Contact Coag : 200 watts
Spray Coag : 125 watts
Bipolar Coag : 110 watts
